NEWS Q-POWER14

camco

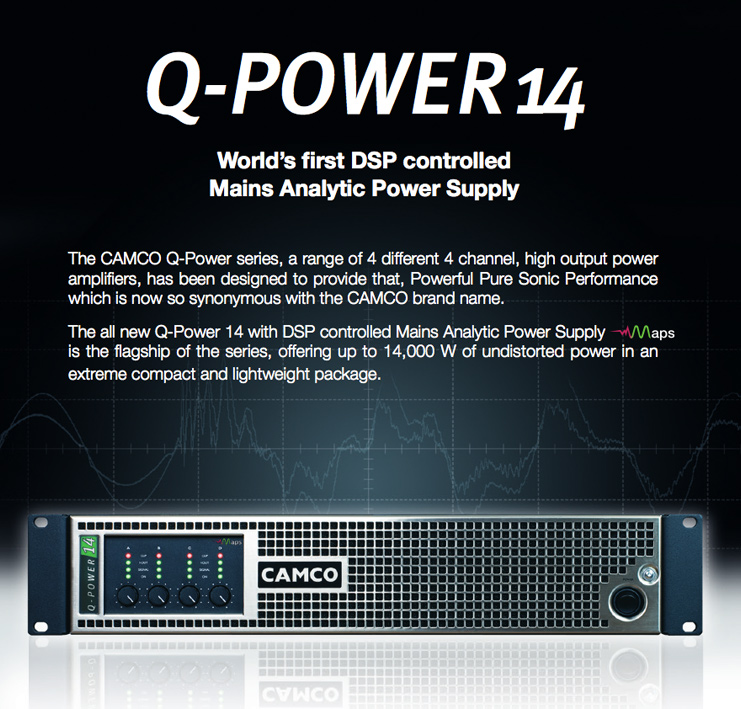

The CAMCO Q-Power series, a range of 4 different 4 channel, high output power amplifiers, has been designed to provide that, Powerful Pure Sonic Performance which is now so synonymous with the CAMCO brand name. The all new Q-Power 14 with DSP controlled PFC power supply is the flagship of the series, offering up to 14,000 W of undistorted power in an extreme compact and lightweight package.


NEW TECHNOLOGY

The development of a DSP controlled, active PFC (Power Factor Correction) enables the Q-Power 14 to use the mains power supply much more efficiently than before. The PFC makes the immense power of 3,500 W per channel possible and improves the impedance headroom down to 2 Ohms. The PFC provides a solid supply voltage to the amplifier output modules, independently from different or fluctuating mains voltages.

Via a USB connector on the rear, the power supply can be configured to different circuit breaker characteristics and tripping currents. The Q-POWER 14 power supply’s DSP automatically choses the best regulating algorithms for highest power performance for any mains voltage range (100 V, 120 V and 230 V).

Furthermore the Q-Power 14 introduces new class D amplifier technology offering smooth and responsive handling with massive output power while maintaining CAMCO’s famous sonic integrity.

DESIGNED FOR FLEXIBILITY OF USE

With the introduction of the Q-Power series CAMCO aim to deliver simple, pure and reliable power for applications where cost and ease of use are paramount.



MAINS ANALYTIC POWER SUPPLY

camco




> Q-Power Series Product-Site
